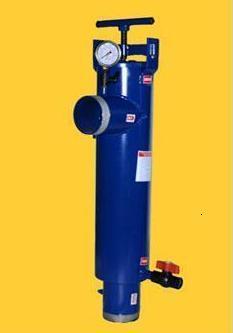

Screen Filters

Our Screen Filters are manufactured with high quality raw material. The screen filters are with, Sophisticated Welding Process and Filter Elements are made with PVC 110 x 10kg. Double wire mesh, S.S 304 / 316.

Detailed Description
Corrosive resistant, pre-treated epoxy / polypropylene powder coating is done. Pressure gauge sockets of 1/4" for checking pressure is provided at inlet / outlet, available in threaded connection B. S. P., and flanged end connections can be provided as per customer requirement, as well as color options as per customers requirement.

"L" type screen Filters Specifications as follows:-

Model
Filter Body Dia.
Inlet/Outlet
Height
Flow m3/ hr
SJ - 10
Ø 165
50 MM
461
10
SJ - 20
Ø 165
50 MM
610
20
SJ - 30
Ø 165
65 MM
767
30
SJ - 40
Ø 165
80 MM
767
40
SJ - 50
Ø 165
80 MM
869
50
SJ - 60
Ø 165
100 MM
932
60
