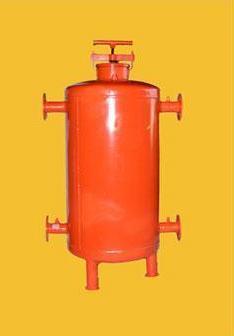

Sand Filters

The Sand Filters can be used as Primary Filtration, and can be used as Single or Battery of Sand Filter use of Silica Quartz Sand with Mushroom ensures effective filtration.

Specifications
Model No : SJ - 10
Inlet / Outlet Ø : 50
Height : 1200
Max Flow Rate m3/ r : 10
Color Option : As per client requirement

Detailed Description
Anti corrosive pre-treated epoxy / polypropylene powder coating to ensure long life. Inlet / Outlet pressure gauge points to check pressure.
Optional : - Color as per customer requirement
Back flush arrangement can be provided for back flushing as per customer requirements.

B) Vertical Sand Filters: -
Vertical Sand Filters Specifications as Follows:-

Model
Inlet/Outlet
Height
Max Rate Flow m3/ r
SJ - 10
50
1200
10
SJ - 20
50
1440
20
SJ - 30
65
1440
30
SJ - 40
80
1600
40
SJ - 50
80
1600
50
